INGCO Laser Distance & Electrical Diagnostics 3-Piece Combo Kit (HLDD241202)

The INGCO HLDD241202 is a professional-grade 3-piece diagnostic and measurement combo kit engineered for electricians, HVAC technicians, structural contractors, and maintenance engineers. Combining optical laser precision with advanced electrical testing instruments, this kit allows tradesmen to map layout dimensions, verify electrical currents, and check circuit safety quickly and reliably on a single job site.

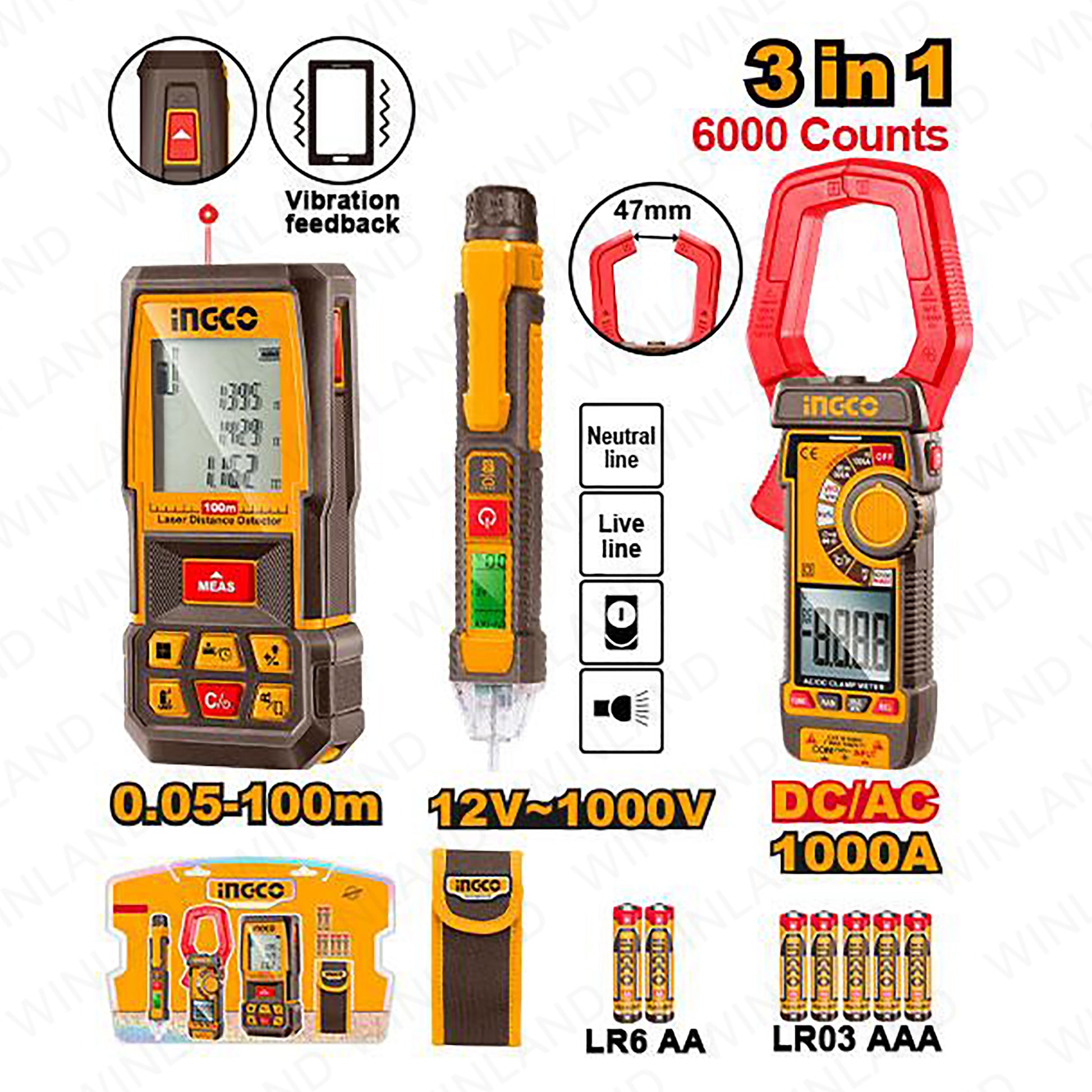

Rather than sourcing standalone layout gear and diagnostic meters, this kit integrates a high-accuracy 100-Meter Laser Distance Detector, a True RMS AC/DC Digital Clamp Meter, and a high-sensitivity Non-Contact AC Voltage Detector. Outfitted with dedicated diagnostic displays, protective insulation casing, and bundled storage pouches, the HLDD241202 provides a highly portable, out-of-the-box solution for commercial testing, home inspection, and large-scale industrial installations.

Individual Tool Specifications

1. INGCO 100m Laser Distance Detector (HLDD1008)

• Measuring Range: 0.05 meters up to 100 meters (0.16\text{ ft} - 328\text{ ft})

• Measuring Accuracy: \pm 2.0\text{ mm}

• Laser Classification: 635nm, <1\text{ mW}, Class 2 safe-view visibility laser

• Operating Temperature Band: 0^\circ\text{C} to +50^\circ\text{C}

• Mathematical Function Modes:

• Single and continuous distance tracking

• Automated area and volume volume calculations

• Indirect Height tracking (Single/Double Pythagorean theorem modes)

• Double addition/subtraction area measurement arrays

• Power Supply: 2 x 1.5V AA Batteries (included)

2. INGCO Digital True RMS AC/DC Clamp Meter (DCM62002 / DCM610002)

• Display Output: High-visibility True RMS screen (Up to 4,000–6,000 counts precision depending on exact regional module)

• AC/DC Current Ranges: 4A / 40A / 400A (Up to 1000A peak limits)

• DC Voltage Limits: 400mV / 4V / 40V / 600V (Up to 1000V maximum)

• AC Voltage Limits: 400mV / 4V / 40V / 600V (Up to 750V maximum)

• Resistance Settings: 400\,\Omega to 40\,\text{M}\Omega (Up to 60\,\text{M}\Omega)

• Capacitance Ranges: 4nF up to 4mF (Up to 60mF continuous)

• Frequency Tracking: 10Hz to 10MHz parameters

• Smart Testing Diagnostic Suite: Inrush current detection, Non-Contact Voltage (NCV) sensing, phase tracking, data hold function, integrated workspace flashlight, and diode testing

• Power Supply: 2x or 3x AAA Batteries (included)

3. INGCO Smart Non-Contact AC Voltage Detector (VD210003)

• AC Voltage Sensing Range:

• High Sensitivity Mode: 12V to 1000V AC (For low-voltage circuit systems)

• Low Sensitivity Mode: 48V to 1000V AC (For standard commercial grids)

• Frequency Band: 50 / 60 Hz

• Alarm Warning Indicators: Dual sound and light visual blinking LED alarms

• Smart Features: Automatic line distinction (Live vs. Neutral recognition), high-illumination white LED target flashlight, and auto power-off battery preservation

• Power Supply: 2 x AAA Batteries (included)

Kit Packaging & Accessories

• 1 x INGCO 100m Laser Distance Detector (HLDD1008)

• 1 x INGCO Digital AC/DC Clamp Meter

• 1 x INGCO Non-Contact AC Voltage Detector (VD210003)

• 1 x Heavy-Duty Protective Canvas Storage Pouch / Carry Bag

• 2 x 1.5V AA Alkaline Power Batteries

• 5 x 1.5V AAA Alkaline Power Batteries

• Packaging: Double blister display layout tracking case
