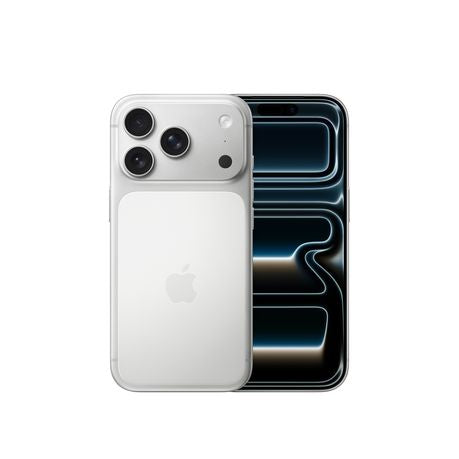

Apple IPhone 17 Pro 256GB

Design & Body

• Dimensions: 150.0 mm x 71.9 mm x 8.75 mm (5.91 x 2.83 x 0.35 inches)

• Weight: 206 grams (7.27 ounces)

• Build: Heat-forged aluminum unibody frame, Ceramic Shield 2 front panel, half-aluminum / half-Ceramic Shield back panel

• Durability: IP68 dust and water resistant (maximum depth of 6 meters up to 30 minutes)

• Controls: Action Button and tactile Camera Control interface

Display

• Type: LTPO Super Retina XDR OLED, ProMotion (adaptive 1Hz–120Hz refresh rates)

• Size: 6.3 inches (diagonal) all-screen display

• Resolution: 2622 x 1206 pixels at 460 ppi

• Brightness: 1000 nits max (typical); 1600 nits peak (HDR); 3000 nits peak (outdoor); 1 nit minimum brightness

• Protection: Ceramic Shield 2 with a scratch-resistant, anti-reflective coating

• Features: Dynamic Island, Always-On display, HDR10, Dolby Vision, 2,000,000:1 contrast ratio

Platform & Performance

• Processor: Apple A19 Pro (3nm process node)

• CPU: Hexa-core (2 performance cores at 4.26GHz + 4 efficiency cores at 2.60GHz)

• GPU: 6-core Apple GPU with dedicated hardware-accelerated ray tracing and Neural Accelerators

• Neural Engine: Upgraded 16-core machine learning engine

• Thermal Management: Integrated vapor chamber cooling system built into the unibody frame

• RAM: 12GB LPDDR5X

• Storage Options: 256GB, 512GB, 1TB (NVMe; non-expandable)

Rear Camera System

• Main (Fusion Wide): 48 MP, f/1.78, 24mm equivalent, 1/1.28", 1.22µm, dual-pixel PDAF, second-generation sensor-shift OIS

• Telephoto (Fusion Periscope): 48 MP, f/2.8, 100mm equivalent, 1/2.55", 0.7µm, PDAF, 3D sensor-shift OIS and autofocus, tetraprism design. Features 4x optical zoom, 8x optical-quality zoom, and up to 40x digital zoom.

• Ultrawide (Fusion): 48 MP, f/2.2, 13mm equivalent, 120° FOV, 1/2.55", 0.7µm, Hybrid Focus Pixels (supports high-resolution macro photography)

• Assistance: TOF 3D LiDAR scanner (depth sensing and low-light autofocus)

• Video Capabilities:

• 4K at 24/25/30/60/100/120 fps; 1080p up to 240 fps

• 10-bit HDR, Dolby Vision HDR recording up to 120 fps

• ProRes and ProRes RAW video recording up to 4K at 120 fps (external storage required)

• Apple Log 2, Genlock support, Audio Mix, and spatial video recording

• Dual Capture mode (simultaneous 4K Dolby Vision recording with front and rear cameras)

Front Camera (TrueDepth / Center Stage)

• Sensor: 18 MP multi-aspect, f/1.9, 20mm wide, PDAF, OIS

• Depth Sensing: SL 3D biometrics sensor array supporting Face ID

• Video Capabilities: 4K recording up to 60 fps, ProRes RAW and Apple Log 2 support, Dual Capture functionality

Connectivity & Audio

• Cellular: 5G (sub‑6 GHz and mmWave with 4x4 MIMO via Qualcomm Snapdragon X80 modem)

• Satellite Features: Emergency SOS, Messages, and Find My via satellite (Globalstar infrastructure)

• WLAN: Wi-Fi 7 (802.11be) with 2x2 MIMO (powered by the Apple N1 wireless networking chip)

• Bluetooth: Version 6.0 (A2DP, LE)

• Positioning: Precision dual-frequency GPS (L1+L5), GLONASS, Galileo, QZSS, BeiDou, NavIC

• Interface Port: USB Type-C 3.2 Gen 2 (up to 10Gbps data transfer, DisplayPort video output)

• Additional Chips: Second-generation Ultra Wideband (UWB) tracking chip, Thread networking, NFC

• Audio: Stereo speakers, Spatial Audio recording, four studio-quality microphone array with wind noise reduction

Battery & Charging

• Capacity: 3998 mAh Li-Ion (nominal capacity for Nano-SIM variant)

• Wired Charging: USB-PD 3.2 supporting quick charging up to 40W (charges up to 50% in approximately 20 minutes)

• Wireless Charging: 25W MagSafe wireless charging, up to 15W Qi2 wireless charging

• Reverse Power: 4.5W reverse wired charging via USB-C
