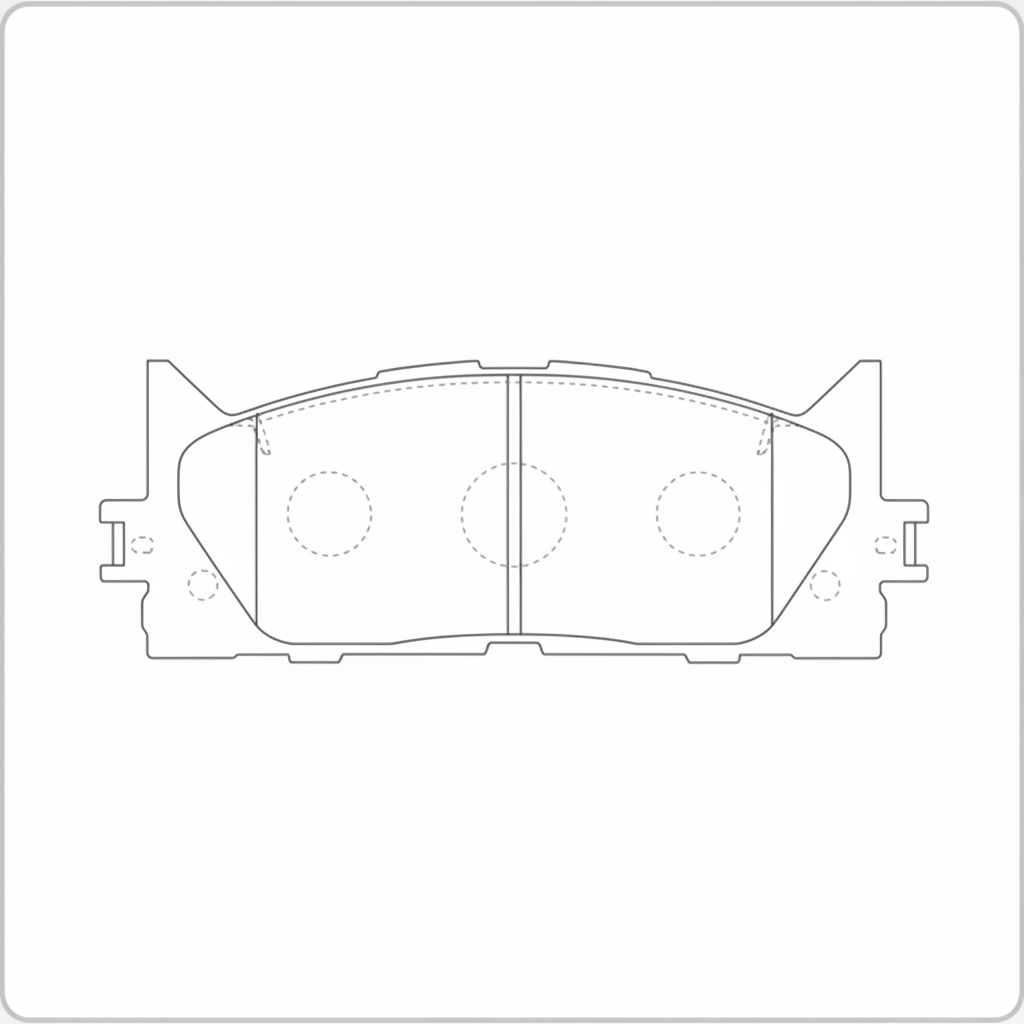

2006-2012 Toyota Camry Front Brake Pads

Front Brake Pads for 2006–2012 Toyota Camry (XV40 Generation)

Maintain sharp stopping power and confident pedal feel with premium Front Brake Pad Sets engineered specifically for the 2006–2012 Toyota Camry. This period covers the entire production run of the highly popular XV40 generation, which includes the 2.4L (2AZ-FE), 2.5L (2AR-FE), 3.5L V6 (2GR-FE), and the 2.4L Hybrid variants.

Because the XV40 platform is heavier and wider than its predecessors, its front braking system uses substantial caliper assemblies designed for high thermal stability and consistent performance under repeated braking.

Technical Specifications & Part Numbers

• OEM Part Number: 04465-06100 (also replaces or interchanges with 04465-33440, 04465-33450, 04465-33470, and 04465-AZ201)

• Standard Dimensions:

• Width/Length: Approx. 140.2\text{ mm}

• Height: Approx. 59.4\text{ mm}

• Thickness: 17.5\text{ mm}

• Brake System Type: Advics / Sumitomo Caliper System Fitter

• Friction Material Preference: Premium Ceramic is the industry favorite for this generation to guarantee a dust-free, silent ride while protecting the front rotors from premature warping.

Top Recommended Premium Aftermarket Brands

• Akebono ProACT: Part Number ACT1222

• Why choose it: Akebono is the factory original equipment supplier for many Toyota models. The ProACT ceramic line delivers ultra-quiet braking, excellent cold-bite response, and virtually zero brake dust on your wheels.

• Aisin: Part Number BPTO-1004

• Why choose it: As a core member of the Toyota group, Aisin pads match the exact factory-spec friction coefficient and backing plate design, restoring your pedal feel to brand-new condition.

• Brembo Ceramic: Part Number P 83 071N

• Why choose it: Engineered with advanced multi-layer shims to eliminate vibration and squeal. It offers superb thermal resistance for V6 or heavily loaded commuter models.

• Bosch QuietCast: Part Number BC1222

• Why choose it: Features a pre-attached rubber-core shim that mimics original equipment designs to dampen noise, alongside a molded slot and chamfer setup for smooth engagement.

Critical Installation Details for the XV40 Front Brakes

• Hardware and Abutment Clips: The front calipers use stainless steel slide clips (abutment shims) where the ears of the brake pads sit. Over time, brake dust and road grime build up beneath these clips, causing the pads to bind. Always pop out the old clips, scrub the caliper bracket saddle clean with a wire brush, and install fresh, lightly lubricated clips.

• Caliper Slide Pins (Top vs. Bottom): The XV40 front caliper slide pins are not identical. One pin typically features a small rubber bush/sleeve at the tip to prevent caliper rattle. Pay close attention during removal to ensure they return to their correct upper or lower positions. Lubricate them exclusively with a high-temperature synthetic silicone brake grease.

• Torque Specifications:

• Caliper Guide Pin Bolts: Torque to approx. 34 \text{ N}\cdot\text{m} (25 \text{ ft-lbs}).

• Caliper Bracket-to-Knuckle Bolts (if removing to change rotors): Torque to approx. 107 \text{ N}\cdot\text{m} (79 \text{ ft-lbs}).
